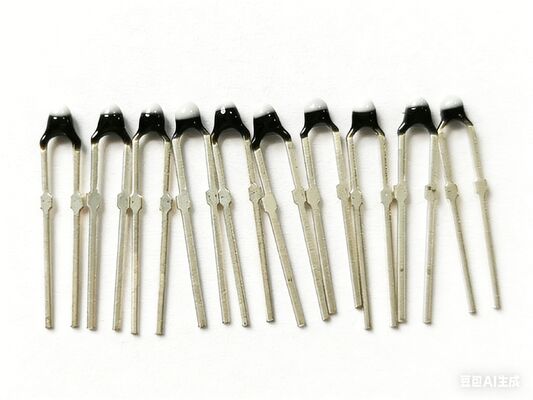

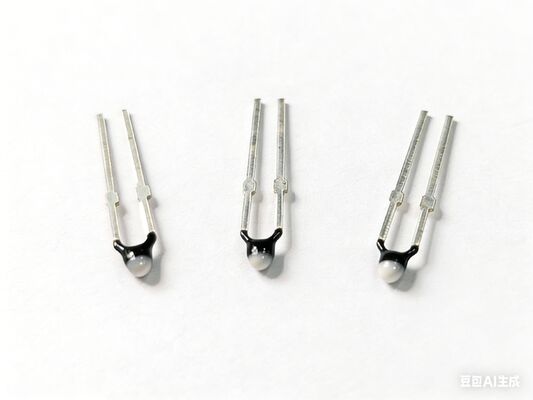

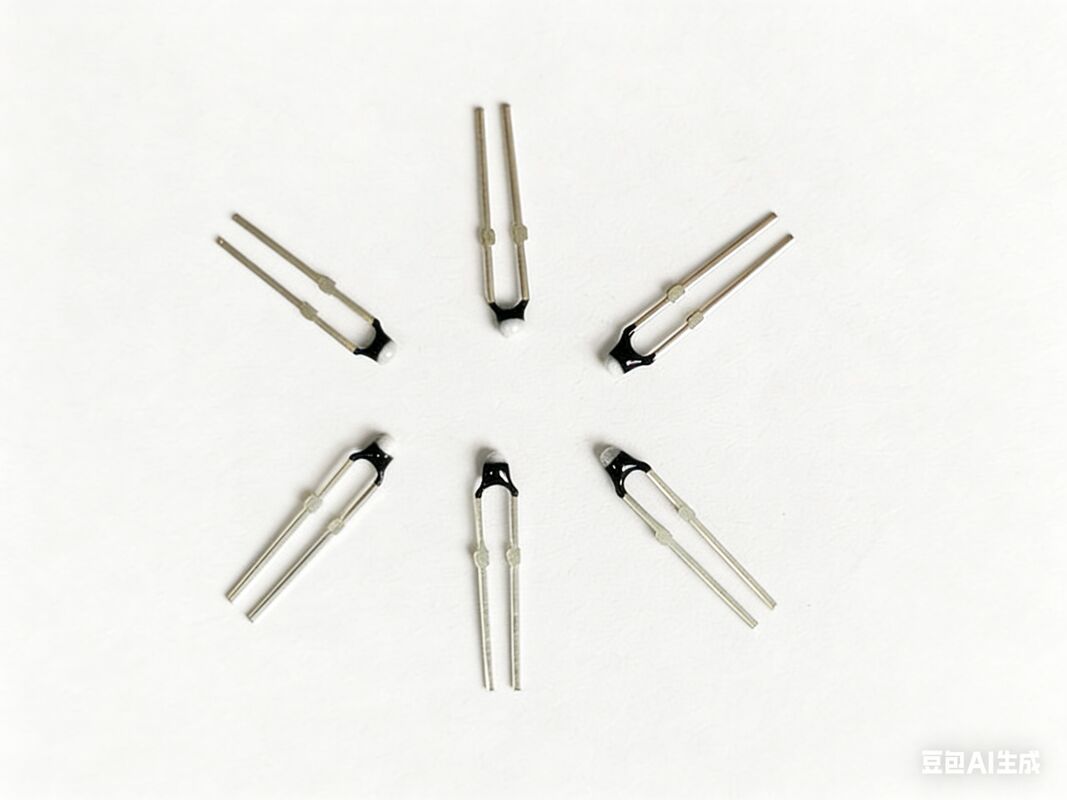

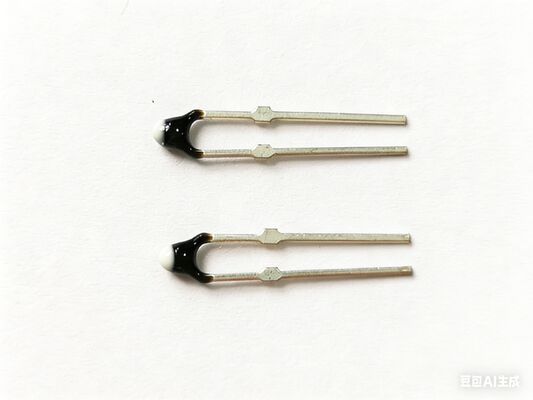

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor

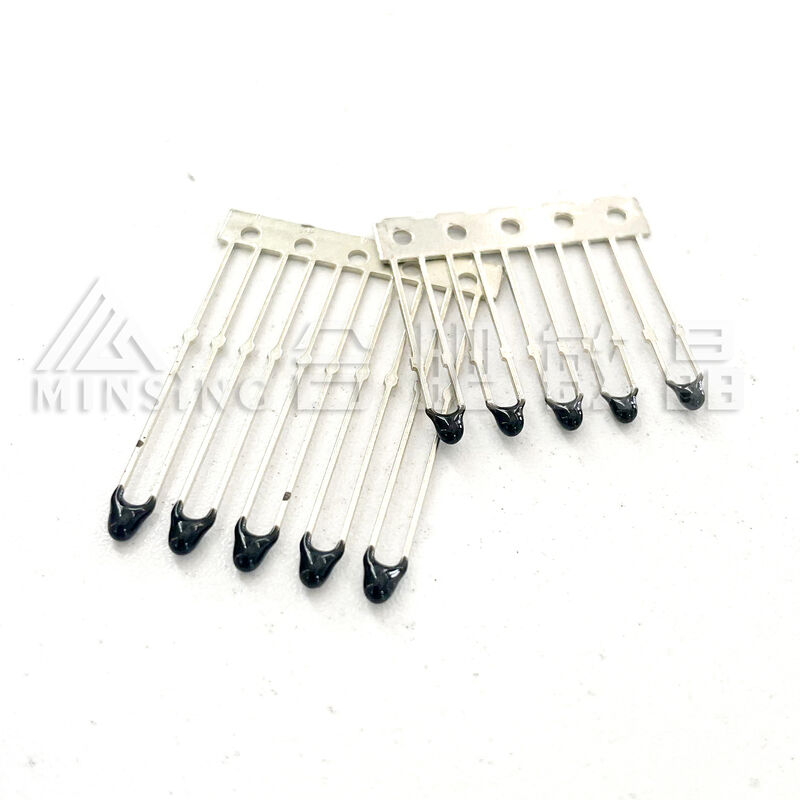

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape​

Product Feature:

Uniform shape facilitates automated assembly /  Long term reliability

Application:

Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,

fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,

vending machines, refrigerated display cases, agricultural equipment

Caution:

• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
