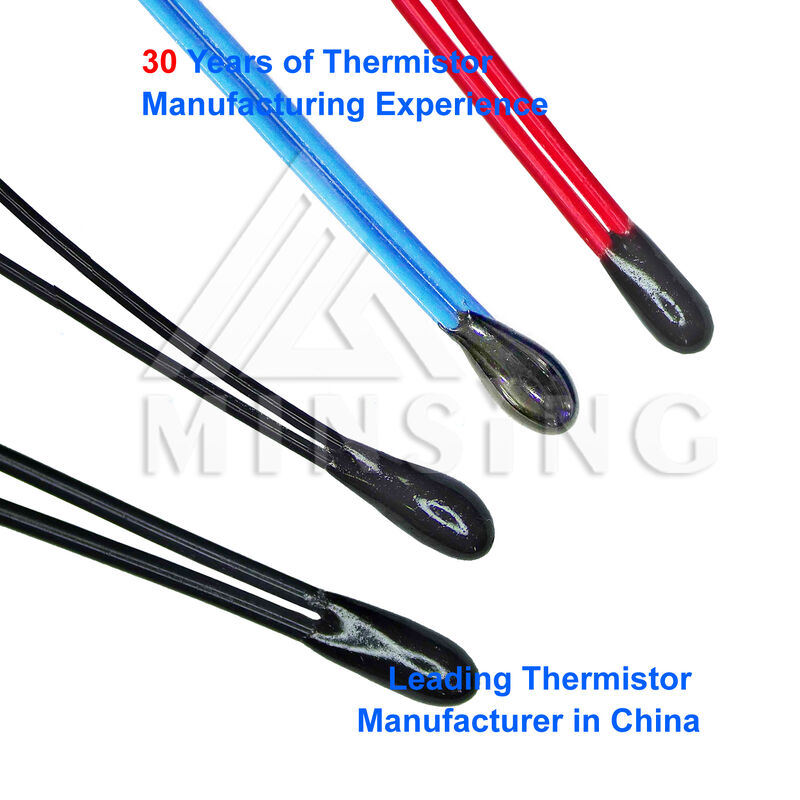

Precision NTC Thermistor | Excellent Thermal Cycle Endurance | Widely Used in Automotive Industry
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Minsing |
| گواهی: | IATF16949/ISO9001/CE/RoHS |
| شماره مدل: | MF5A-5 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 500 عدد |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | فله |
| زمان تحویل: | 7-10 روز کاری |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | 50 میلیون قطعه در سال |
|
اطلاعات تکمیلی |
|||
| مواد سر: | رزین اپیوکسی | سیم سرب: | پی وی سی، تفلون، کینار |
|---|---|---|---|
| اندازه سر: | Φ1.5-Φ4.5mm | طول سیم: | 15-2000 میلی متر |
| R25 ℃: | 0.5KΩ-2000KΩ | ارزش B: | 3000K-4500K |
| تحمل R: | 0.5٪، 1٪، 2٪، 3٪، 5٪ | تحمل B: | ± 0.5٪ تا 3±٪ |
توضیحات محصول

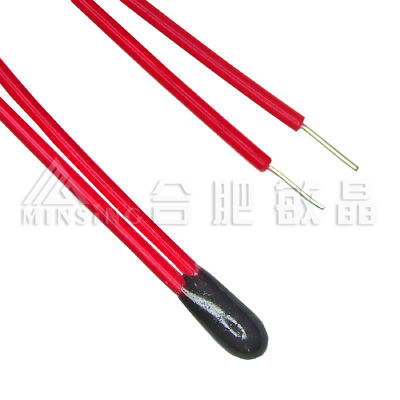

Precision NTC Thermistor | Excellent Thermal Cycle Endurance | Widely Used in Automotive Industry
NTC thermistor sensors for automobiles and vehicles are designed so as to withstand various severe enviromental testing. It feature high accuracy and reliability.
Product Feature:
Custom size and wire configuration / Fast Response Time / Tight tolerance on resistance and Beta value
Application:
Assembly into probes / Liquid or gas temperature control and monitoring
Automotive (Air Conditioning, Cabin Climate Control/Management, External Temperature Monitoring,Heated Seats, Heated Steering Wheels, other)
Specification Explain:
MJ MF 5A-5 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-5 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 15s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
Tell us your request:
1.The application of the NTC thermistor:__________
2.Working environment of NTC thermistor:________
3.Operation temperature range:___℃ to ___℃
4.Any requirement about sensor probe material or dimension:______________
5.The R value:___K ohm ±___% at ___℃,
6.The B value: B(____℃/____℃) = _____K ± ___%
